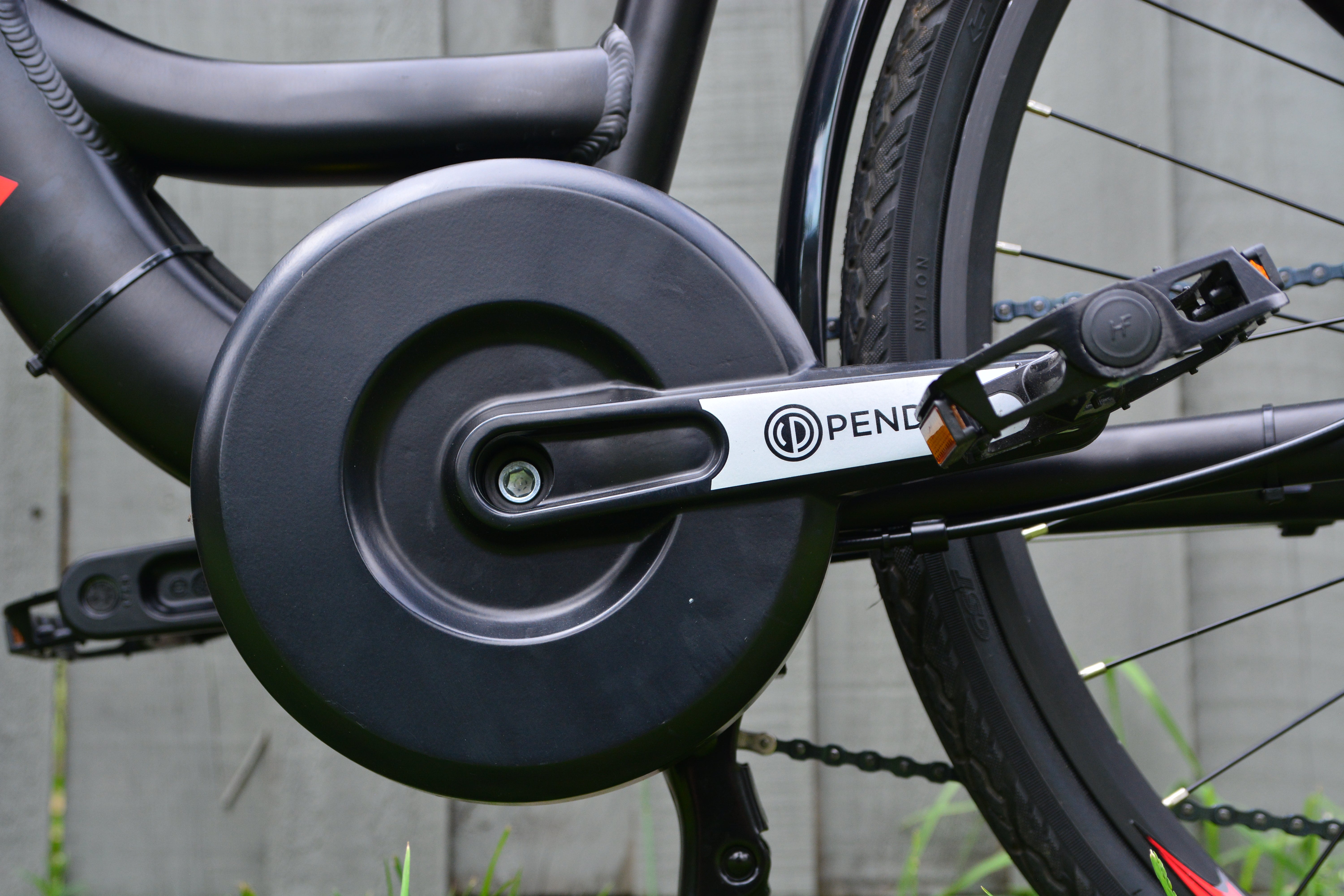

Pendix Edrive

The Pendix eDrive features the ability to fit to almost any bike.

With a peak of 65 Nm torque, the motor generation eDrive is stronger than its predecessor and incredibly smart. The latest, highly developed motor software in combination with the Pendix bike PRO App provides an innovation system. Riders can decide whether they want the full motor support or whether to have the maximum range, for a longer touring ride for example. This new function called "Drive Profiles" allows individual settings to be made, this enables the rider to choose to have just the right amount of support throughout their ride.

However, it’s not all about the App and the understated nature of our power pack. The entire construction reflects the development competence of the engineers at Pendix. The motor is just 3 cm deep and has a diameter of less than 30 cm. The smart technology is packed into this space and protected from the external environmental impacts by the protective metal casing.

The motor in the Pendix eDrive system does not require any gears at all, so there are no mechanical wear parts. Where there is no wear and tear, there is no maintenance, so you get a motor that is maintenance-free. The gearless design also has two other advantages. Firstly, it is absolutely noiseless. Secondly, when the motor is switched off, there is virtually no resistance from the motor. This allows users can decide for themselves when they decide they need assistance, or alternatively continue to use the bike as a regular bike.

Pendix Mid-Drive Kit & Battery is available for Full Professional Install or with Pendix Installation Tools (These are Pendix tools required for Installation).

Drive

Drive: Brushless bottom bracket motor

Power: 250 W nominal*

Speed (max): 25 km/h**

Drive modes: 3

Torque (max): 50 Nm

Battery

Battery type: Lithium-ion (removable)

Capacity: 300 Wh / 500 Wh

Voltage: 48 V

Charging time 3 h*** / 3 h 20 min****

Range optimal *****45-105 km / 69-160 km

Support

Wheel sizes: All sizes supports frame

Sizes: All with standard construction measures and bottom bracket using BSA 68 mm/ 73mm standard threads.

Dimensions

Additional weight 6.5 kg / 6.9 kg

Dimensions battery 80 x 276 mm (D x H) / 80 x 342 mm (D x H)

Dimensions actuator 292 x 206 x 50 mm (W x H x D)

(*) Reference Germany (250 watt for EU countries)

(**) Higher speeds possible with pure muscle strength

(***) With 2,2 A charging current

(****) With 3,6 A charging current

(*****) Depending on the cyclist, riding style, topography, motor setting and bicycle type
